100% MADE IN CANADA
BUNDLER, HANDLER & DATA-WALLER MODELS
EASILY MANAGE, CARRY AND STORE CORDS, CABLES & HOSES

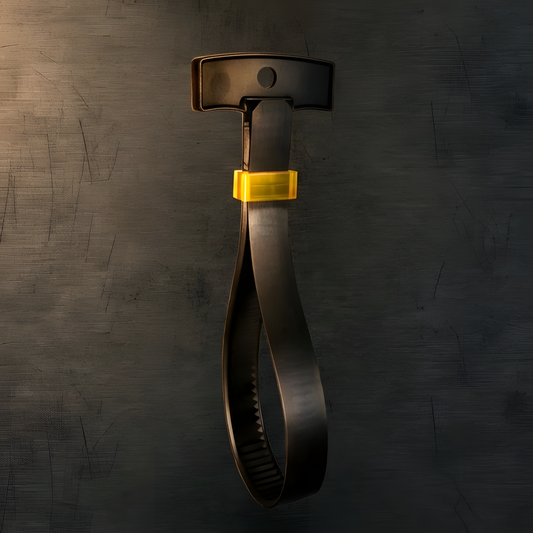

HANDLER 01 MODEL
2020 HANDLER 02
MODEL IN PROGRESS
1' X 26" 9" DIAMETER
U.S., CANADA & VARIOUS EU. PATENTS
SIMPLE & REUSABLE - VERY FLEXIBLE - VIRTUALLY UNBREAKABLE - EASILY ADJUSTABLE - FROM 1 - 4"
- HANGS FLAT ON A WALL - AND WATERPROOF.
MOST OF THESE FEATURES NOT AVAILABLE IN THE PRODUCTS SOLD FOR HOSE AND CORD ORGANIZATION TODAY, PLUS LOWER PRODUCTION COSTS, FAST REGIONAL SHIPPING AND HIGHER PROFIT MARGINS!
3/4" X 19" STRAP WITH 2.5" WIDE HANDLE 8.5" TALL WHEN CLOSED
​
​
CARRY & STORE AIR HOSE
& GUN TOGETHER
HANG IT ALL ON A WALL
WITH JUST A R.H. SCREW
MARINE GRADE WATERPROOF WITH VERY HIGH U.V. PROTECTION
HANDLER STRAPS CAN BE HUNG FLAT ON THE WALL ON A ROUND OR FLATHEAD SCREW AND CAN BE CUT TO LENGTH FOR A PARTICULAR USE
FOLD HANDLE INSIDE THE CORD ROLL AND NEATLY TUCK AWAY IN A TOOL BOX
CARRY EXTRA GEAR ON BACKPACK
SMALL AS 1" DIAMETER. CUT EXCESS STRAP IF DESIRED
CARRY, HANG OR FOLD HANDLE IN AND STORE CORD, HOSE AND ROPE NEATLY AND
EASILY
HANDLER STRAP CONNECTION INSTRUCTIONS
SLIDE STRAP END THROUGH
LOWER END OF BUCKLE
PULL STRAP TO DESIRED DIAMETER
SLIDE BUCKLE DOWN TO END OF BUCKLE SLIDE AREA LOCKING TEETH TOGETHER
THE HANDLER STRAP IS 3/4" X 16" X 1/8". CONNECTED THE MAXIMUM DIAMETER IS 3.5", THE MINUMUM DIAMETER IS 1". THE ADJUSTMENT INCREMENTS ARE 1/8". THE STRAP WILL HOLD APP. 100 LBS. AND HAS A VERY HIGH UV AND STRESS CRACK RESISTANCE BUILT IN TO IT. DIFFERENT SIZES WILL BE INTRODUCED IN THE NEAR FUTURE.
THIS PRODUCT IS PATENTED IN THE U.S.A. utility patent no. 9840357 WITH PATENTS IN THE E.U. AND CANADA ALSO.
HANDLER STRAP CONNECTED WITH BUNDLER STRAP TO APP.9" DIAMETER
COMMON USES
2020 BUNDLER 02
MODEL IN PROGRESS
1' X 26"
​
BUNDLER 01 MODEL
U.S. UTILITY PATENT NO. 9643763
LARGE ELECTRICAL CORDS, HOSE AND ROPE MANAGEMENT
MARINE GRADE WATERPROOF
ATTACH HOSES TO AIR COMPRESSORS AND VACUMS
BUNDLER STRAPS USED WITH LASHING
PATCHES TO CARRY EXTRA OR WET GEAR ON BACKPACKS! ALSO GREAT FOR BUNDLING UP ROLLED CLOTHES TO KEEP THE PACK ORGANIZED INSIDE ALSO.
BUNDLE TARPS & OTHER WET GEAR
TWO OR MORE BUNDLER STRAPS CAN BE USED TOGETHER FOR LARGER OBJECTS LIKE SLEEPING BAGS
THE BUNDLER STRAP SIZE IS 3/4" X 19" X 1/8" AND CONNECTED THE MAX. DIAMETER IS 5", THE MIN. DIAMETER IS 2". 2 STRAPS TOGETHER HAVE A MAX. DIAMETER OF APP. 10". THE ADJUSTMENT INCREMENTS ARE EVERY 1/8". THE STRAP WILL HOLD APP. 100 LBS. AND HAS A VERY HIGH UV AND STRESS CRACK RESISTANCE BUILT IN TO IT. DIFFERENT SIZES AND STRENGTHS WILL BE INTRODUCED IN THE NEAR FUTURE.
CONNECTION INSTRUCTIONS
TWO BUNDLER STRAPS USED TOGETHER FOR A BELT IN A PINCH
SLIDE STRAP END THROUGH BUCKLE OPENING NEAR OTHER END OF STRAP
PULL STRAP TO DESIRED DIAMETER
SLIDE BUCKLE TO STOP AT OPPOSITE END OF BUCKLE SLIDE AREA, LOCKING STRAP TEETH TOGETHER
SIMPLE & REUSABLE
​
VERY FLEXIBLE
​
ADJUSTABLE 2" - 5"
​
HIGH U.V. PROTECTION
​
VIRTUALLY UNBREAKABLE
​
100 LB. CARRY
​
HIGH MARGINS
​
​
THIS PRODUCT IS PATENTED IN THE USA. utility pat. no. 9643763 WITH PATENTS IN VARIOUS EU. COUNTRIES AND CANADA
​
​
​

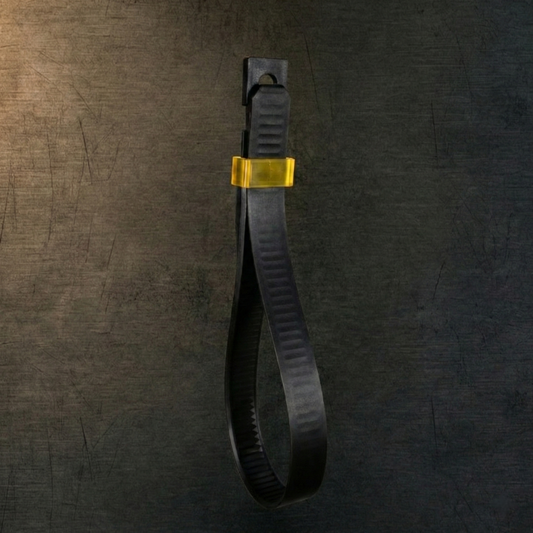

DATA-WALLER MODEL
U.S. UTILITY PATENT NO. 9643763
THE DATA-WALLER STRAP GETS IT'S NAME AS IT CAN SCREW TO THE WALL AND IS ESPECIALLY GOOD FOR RUNNING DATA AND TELECOMMUNICATIONS CABLE. IT HAS MANY WAYS TO ATTACH, IS REUSABLE AND HAS A VARIETY OF USES. IT CAN ALSO BE MOUNTED HORIZONTALLY AND IS VERY FLEXIBLE AND GENTLE ON CABLE WHILE HOLDING RUNS TAUT WITH LESS SAG THAN J HOOKS AT A SUBSTANTIAL SAVING. IT IS FULLY ADJUSTABLE FROM 1 TO 3.5 INCHES.
COMMON USES BELOW
HERE IT IS FASTENED TO A WIRE USING A BAT WING AND THEN A BEAM CLAMP
A CLIP, SCREW AND A THUMBNUT ENABLES EASY ADJUSTABLE FASTENING TO WIRE AT ANY ANGLE
VERY TIDY AND TAUT HORIZONTAL DATA RUN WITH TRIMMED LENGTH STRAPS
SUSPENDED AIR HOSE AND ROPE
DATA SUSPENSION STRAPS SCREWED TO THE WALL WITH 2 SCREWS EACH MAKES THIS DATA RUN VERY EASY TO LOAD, PULL CABLE, ADJUST, ADD TO OR REMOVE WITH A VERY LARGE CAPABILITY OF A 3.5 INCH DIAMETER
WATERPROOF WITH HIGH U.V. FOR OUTDOOR HOSES
SEE HANDLER MODEL PREVIOUS FOR LIKE SPECS AND CONNECTION INSTRUCTIONS
THE STRAP WILL HOLD APP. 100 LBS.
THE DATA WALLER WILL BE APPROVED FOR PLENUM USE FIRE CODE IN NEAR FUTURE
THIS PRODUCT IS PATENTED IN THE USA. UTILITY PATENT NO. 9840357 WITH PATENTS IN THE E.U. AND PENDING CANADA
CUSTOMER SERVICE
CONTACT
WHOLESALE INQUIRIES
SLIDELOCK STRAPS BRAND IS LOCATED AT
1000 PARKER ST. VANCOUVER
BRITISH COLUMBIA CANADA V6A 2H2
CO. CHANGES MILLWORK INC.
SLIDELOCK STRAPS AND BUCKLES ARE MADE IN CANADA FROM CANADIAN AND AMERICAN MATERIALS
PLUGHARNESS
THE PLUGHARNESS IS A ONE PIECE POLYURETHANE DEVICE THAT SNAPS ON TO ELECTRICAL CORD CONNECTIONS TO MAINTAIN AND TO DEFLECT THE CONNECTION WHEN THE CORDS ARE DRAGGED AROUND CORNERS AND OVER ROOFS AND THE LIKE ELIMINATING A VERY FRUSTRATING PART OF YOUR DAY!
.png)
THE PLUGHARNESS FITS 16/3 AND 14/3 CORDS
SELL SHEETS BELOW
HANDLER MODEL
TOUGH, REUSABLE AND ADJUSTABLE CORD AND HOSE CARRY STRAP WITH SLIDE LOCK BUCKLE THAT HANGS FLAT ON A ROUND HEAD SCREW ON THE WALL OR FOLDS IN AND TUCKS AWAY NEATLY IN A TOOL BOX! 100 LB. CARRY CAPABILITY.
u.s. patent no. 9,840,357 & ca. & EU. patents
WATERPROOF
TOOLBOX FIT
BUNDLER MODEL
REUSABLE, ADJUSTABLE TOUGH, 3/4 X 20 INCH, VERY
FLEXIBLE STRAP WITH SLIDE LOCK BUCKLE GREAT FOR BUNDLING AND CARRYING HEAVY DUTY ELECTRICAL CORDS AND MEDIUM SIZE HOSES ETC. UP TO 100 LBS.
WATERPROOF AND VERY HIGH U.V. FOR LONG LASTING MARINE AND OUTDOOR USE. WORKS WELL WITH LASHING PATCHES ON BACKPACKS.
u.s.pat. no.9,643,763 &various
e.u. &ca. patents
slidelockstraps.com
INDUSTRIAL TOUGH, VERY FLEXIBLE WITH 1 TO 3.5
INCH ADJUSTMENT, WITH SLIDE LOCK BUCKLE STRAP THAT CAN HOLD OVER 250 DATA CABLES THIS STRAP SCREWS TO WALLS, BEAM CLAMPS AND BAT WINGS FOR RUNNING TAUT DATA WIRE ANY WHERE QUICKLY AND IS GREAT FOR HANGING CORDS AND HOSES NEATLY. DATA-WALLER MODEL
u.s. patent no. 9,840,357 &various e.u. &c.a.patents
​
slidelockstraps.com
DATA-WALLER MODEL
